DOMESTIC/COMMERCIAL DOORS
Cortizo Doors
The cortizo range of doors includes:
Cortizo Doors
Discover the exquisite beauty and superior performance of Cortizo from IPC Windows
At IPC Windows, we believe that every detail matters when it comes to enhancing your living or working environment.
That’s why we partner with industry-leading suppliers like Cortizo to provide you with the finest door solutions available. Cortizo is renowned for its commitment to innovation, design, and quality, making them the perfect choice for elevating your space.
The Cortizo Door Range
(Click on a product to find out more details)

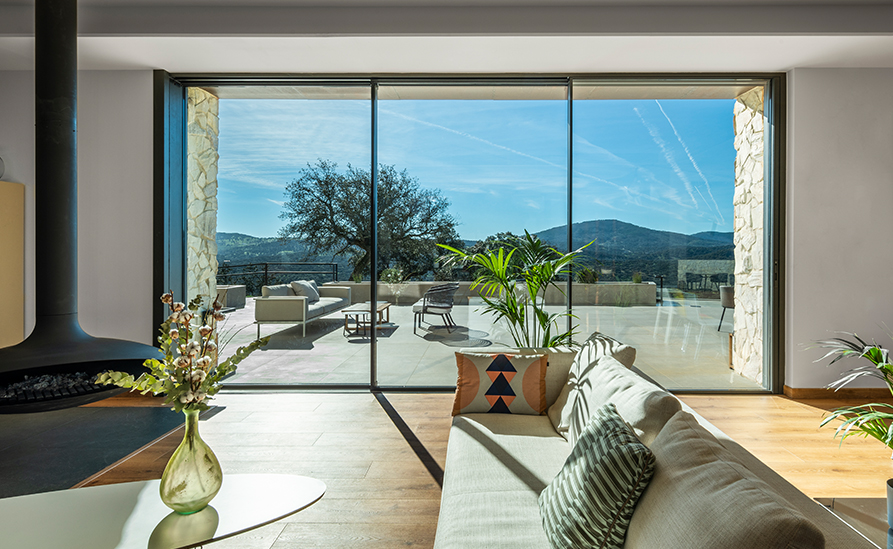

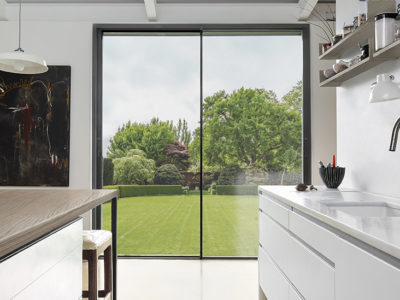

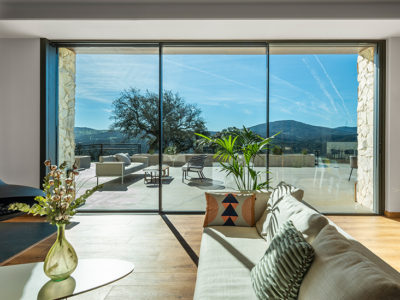

COR Vision Sliding Door
Commercial Doors
Max-width: 2,500mm
Max-height: 3,000mm
U-Value*: 1.3W/m²K*
The COR Vision Sliding Door is the epitome of modern design and functionality. Crafted with precision by Cortizo, a leading innovator in door solutions, this sliding door redefines the way you interact with your space. Its sleek aesthetics, smooth operation, and energy-efficient features make it a standout choice for those seeking both style and performance. Elevate your interior with the COR Vision Sliding Door, brought to you by IPC Windows.
- Interlock profile: 20 mm
- Maximum surface glazing area
- Possibility of embed the bottom, top and lateral frames with in the wall
- Possibility of pocket system
- Possibility of sash encounters at a 90° corner without a mullion
The COR Vision Sliding Door has a range of opening possibilites:
- Up to 6 sashes
- Up to 3 rails
- 1 sash + 1 fixed / 2 sashes + 1 fixed
- Pocket solution possibility in 1, 2, 3 & 4 sashes
- Possibility of interior and exterior corner at 90º without mullion
*Please consult typology, dimensions and glazing
COR Vision Sliding Door, Your Way...
- Specification
- Performance
- Dimensions
- Downloads
COR Vision Sliding Doors Specification
Dual colour Option
Yes
Colour powder coating (RAL, mottled and rough) Option
Yes
Wood effect powder coating Option
Yes
Anti-bacterial powder coating Option
Yes
Anodised Option
Yes
COR Vision Sliding Door Performance
Note: Reference test 1.23 x 1.55 m. 1 sash + 1 fixed light
Transmittance
Uw from 1.3 (W/m²K)
Maximum acoustic insulation
Rw = 41 dB
Air permeability
(EN 12207): CLASS 4
Water tightness
(EN 12208): CLASS 7A
Wind resistance
(EN 12210): CLASS C5
COR Vision Sliding Door Dimensions
Max Sash Width (L)
2,500 mm
Max Sash Height (H)
3,000 mm
Maximum glazing thickness
30 mm
Frame Section
116 mm - 182 mm 3 rails
Sash Section
70 mm
Profile thickness
Door 1.7 mm
Polyamide strip length
16 - 24 mm
Polyamide strip length
32 - 35 mm
Maximum Sash Weight
320 kg
COR Vision Sliding Door Downloads
COR Vision Sliding Door Data Sheet Download
Specification
COR Vision Sliding Doors Specification
Dual colour Option: Yes
Colour powder coating (RAL, mottled and rough) Option: Yes
Wood effect powder coating Option: Yes
Anti-bacterial powder coating Option: Yes
Anodised Option: Yes
Performance
COR Vision Sliding Door Performance
Note: Reference test 1.23 x 1.55 m. 1 sash + 1 fixed light
Transmittance : Uw from 1.3 (W/m²K)
Maximum acoustic insulation: Rw = 41 dB
Air permeability: (EN 12207): CLASS 4
Water tightness: (EN 12208): CLASS 7A
Wind resistance: (EN 12210): CLASS C5
Dimensions
COR Vision Sliding Door Dimensions
Max Sash Width (L): 2,500 mm
Max Sash Height (H): 3,000 mm
Maximum glazing thickness: 30 mm
Frame Section: 116 mm - 182 mm 3 rails
Sash Section: 70 mm
Profile thickness: Door 1.7 mm
Polyamide strip length: 16 - 24 mm
Polyamide strip length: 32 - 35 mm
Maximum Sash Weight: 320 kg

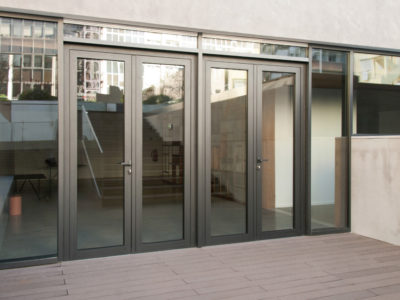

Millennium Plus 70 Door
Commercial Doors
Max-width: 1,800 mm
Max-height: 3,000 mm
U-Value*: 0.9W/m²K*
Discover the unparalleled craftsmanship of the Millennium Plus 70 Door by Cortizo. This exceptional door combines timeless elegance with cutting-edge technology. Crafted to perfection, it adds a touch of sophistication to any space. With its innovative design, high security features, and energy efficiency, the Millennium Plus 70 Door sets a new standard for entrance doors. Elevate your property’s style and security with the Millennium Plus 70 Door by Cortizo, available through IPC Windows.
- Coplanar door entry system with straight lines and frame depth of 70 mm
- It allows for the set up of an emergency exit with anti-panic devices according to EN 179 & EN 1125 regulations
- Resistance to repeated openings and closings (EN 1191:2000) : 1,000,000 cycles
- Maximum glazing: 54 mm
- Possibility of hidden hinges
The Millennium Plus 70 Door has a range of opening possibilities:
- Open In: Side hung 1 or 2 sashes
- Open Out: Side hung 1 or 2 sashes
- Automatic opening: Internal and external hinged single sash
Millennium Plus 70 Door, Your Way...
- Specification
- Performance
- Dimensions
- Downloads
Millennium Plus 70 Doors Specification
Dual colour Option
Yes
Colour powder coating (RAL, mottled and rough) Option
Yes
Wood effect powder coating Option
Yes
Anti-bacterial powder coating Option
Yes
Anodised Option
Yes
Millennium Plus 70 Door Performance
Note: Door test reference 1.20 x 2.30 m. 1 sash
Transmittance
Uw from 0,9 (W/m²K)
Maximum acoustic insulation
Rw = 38 dB
Air permeability
(EN 12207) CLASS 4
Water tightness
(EN 12208) CLASS 6A
Wind resistance
(EN 12210) CLASS C4
Resistance to mild impact
(EN 13049) CLASS 5 (max) - Test on door reference 1.80 x 2.20 m. 2 sashes. Laminated glass 3+3
Resistance to repeated openings and closings
(EN 1191) - 1,000,000 cycles Door test reference 2.10 x 2.20 m. 2 sashes.
Millennium Plus 70 Door Dimensions
Max Sash Width (L)
1,800 mm
Max Sash Height (H)
3,000 mm
Max Sash Width (L) - With Hidden Hinges
1,500 mm
Max Sash Height (H) - With Hidden Hinges
2,700 mm
Maximum glazing thickness
54 mm
Sections
Frame – 70 mm / Sash – 70 mm
Profile thickness
Door 2.0 mm
Polyamide strip length
24 mm
Maximum Sash Weight
220 kg / 120 kg (with hidden hinges)
Millennium Plus 70 Door Downloads
Millennium Plus 70 Door Data Sheet Download
Specification
Millennium Plus 70 Doors Specification
Dual colour Option: Yes
Colour powder coating (RAL, mottled and rough) Option: Yes
Wood effect powder coating Option: Yes
Anti-bacterial powder coating Option: Yes
Anodised Option: Yes
Performance
Millennium Plus 70 Door Performance
Note: Door test reference 1.20 x 2.30 m. 1 sash
Transmittance : Uw from 0,9 (W/m²K)
Maximum acoustic insulation: Rw = 38 dB
Air permeability: (EN 12207) CLASS 4
Water tightness: (EN 12208) CLASS 6A
Wind resistance: (EN 12210) CLASS C4
Resistance to mild impact: (EN 13049) CLASS 5 (max) - Test on door reference 1.80 x 2.20 m. 2 sashes. Laminated glass 3+3
Resistance to repeated openings and closings: (EN 1191) - 1,000,000 cycles Door test reference 2.10 x 2.20 m. 2 sashes.
Dimensions
Millennium Plus 70 Door Dimensions
Max Sash Width (L): 1,800 mm
Max Sash Height (H): 3,000 mm
Max Sash Width (L) - With Hidden Hinges: 1,500 mm
Max Sash Height (H) - With Hidden Hinges: 2,700 mm
Maximum glazing thickness: 54 mm
Sections: Frame – 70 mm / Sash – 70 mm
Profile thickness: Door 2.0 mm
Polyamide strip length: 24 mm
Maximum Sash Weight: 220 kg / 120 kg (with hidden hinges)
