DOMESTIC/COMMERCIAL Lanterns
Atlas Lanterns
Atlas range of Lanterns includes:
Atlas Lanterns
Step into a world of captivating illumination with Atlas Roofs
Crafted with a passion for innovation and a commitment to design excellence, Atlas Roofs offers a stunning range of lanterns that redefine how we experience natural light.
Embrace the beauty of daylight as Atlas lanterns flood your living and working spaces with a radiant glow. Each lantern is thoughtfully designed to seamlessly merge indoor and outdoor environments, creating a harmonious connection with nature.
Atlas Lanterns Range
(Click on a product to find out more details)

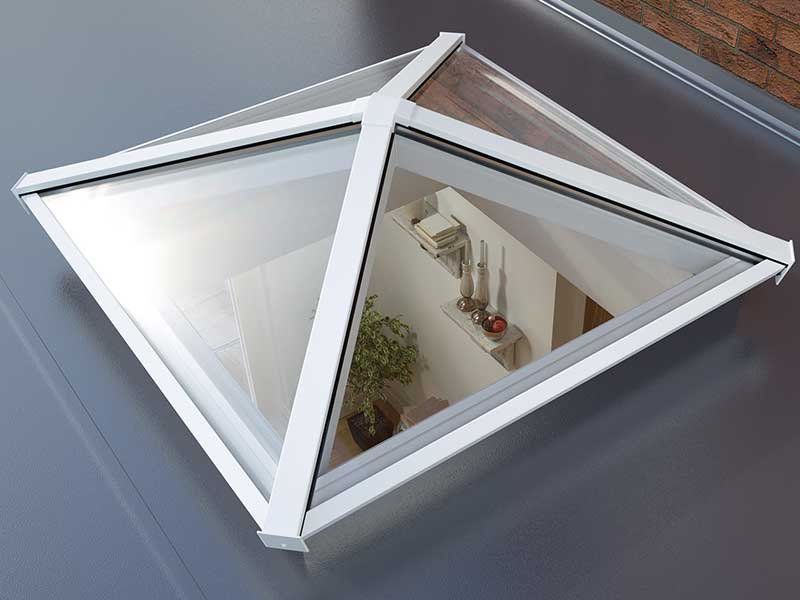

Square Lanterns
Commercial and Domestic Lanterns
Normally a roof lantern requires a 125mm ridge, the new Atlas square lantern design has a shortened ridge measuring 45mm x 45mm. This makes for a completely symmetrical design, which is easier to install and better looking.
SLIMMER
- 40mm wide rafters
- 38% slimmer internal hip than alternatives
- Over 50% lower external bulk
STRONGER
- Tested up to a uniformly distributed load of 3.5 KN/m2
- Structural ringbeam supplied with Atlas lantern roof kits doesn’t rely on the structural stability of the builders kerb on-site
- Pressure plated system for extra security
SUPERIOR THERMAL PERFORMANCE
- Thermal break in rafters prevents cold getting to the inside of the rafter
- Industry leading ridge and rafter U Values
- U Value on ridge and rafters as low as 1.5 W/m2K on DG roofs
- U values in double glazing 1.2 W/m2K as standard and as low as 1.0 W/m2K on request
FITTER FRIENDLY
- No need for excess silicone at the connections to keep water out
- Ensures a fast high quality installation
DESIGN DETAIL – THE ARCHITECT’S CHOICE
- Contemporary appearance
- Roof proportionately correct with rafters and hips all 40mm
- Stock lanterns 25 degrees
Square Lanterns, Your Way...
- Glazing
- Solar Control
- Self-cleaning
- Specification
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
Glazing
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar Control
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Specification
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
SQUARE LANTERN STOCK SIZES
The Atlas Square Lanterns come in a variety of stock sizes
S1 - 1000 x 1000
S2 - 1250 x 1250
S3 - 1500 x 1500
S4 - 1750 x 1750

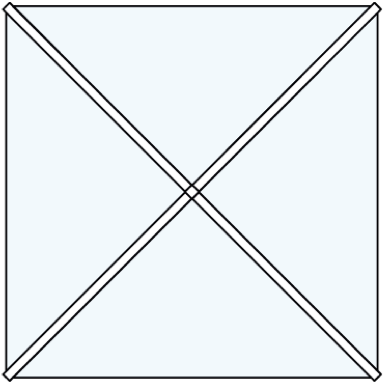

S5 - 2000 X 2000
Regular Lanterns
Commercial and Domestic Lanterns
The Atlas Regular range comes with the same stylish profile but includes additional rafters on each plane.
SLIMMER
- 60% slimmer internal ridge than alternatives
- 38% slimmer internal hip than alternatives
- Over 50% lower external bulk
STRONGER
- Tested up to a uniformly distributed load of 3.5 KN/m2
- Structural ringbeam supplied with Atlas lantern roof kits doesn’t rely on the structural stability of the builders kerb on-site
- Pressure plated system for extra security
SUPERIOR THERMAL PERFORMANCE
- Thermal break in rafters prevents cold getting to the inside of the rafter
- Industry leading ridge and rafter U Values
- U Value on ridge and rafters as low as 0.95 W/m2K
- U values in double glazing 1.2 W/m2K as standard and as low as 1.0 W/m2K on request
- Best U Value available for triple glazing 0.5 W/m2K. Note: longer lead times
FITTER FRIENDLY
- No need for excess silicone at the connections to keep water out
- Ensures a fast high quality installation
DESIGN DETAIL – THE ARCHITECT’S CHOICE
- Variable pitch options available
- Roof proportionately correct with ridge and hips all 40mm
- Stock lanterns 25 degrees. Variable pitch available on standard lead time
Regular Lanterns, Your Way...
- Glazing
- Solar Control
- Self-cleaning
- Specification
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
Glazing
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar Control
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Specification
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
REGULAR LANTERN STOCK SIZES
The Atlas Regular Lanterns come in a variety of stock sizes
T1 - 1000 x 2000
T2 - 1500 x 2500
T3 - 2000 x 3000

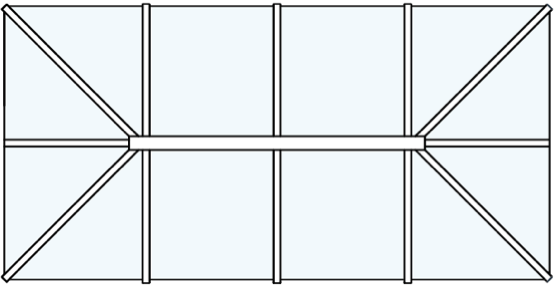

T4 - 2000 x 4000
Contemporary Lanterns
Commercial and Domestic Lanterns
The Atlas Contemporary range of roof lanterns is one of the most popular from IPC. And it’s clear to see why. Apart from its exquisitely stylish slim profile, only hip rafters are used in this spectacular design, leaving all four planes completely clear, affording superior uninterrupted views.
SLIMMER
- 60% slimmer internal ridge than alternatives
- 38% slimmer internal hip than alternatives
- Over 50% lower external bulk
STRONGER
- Tested up to a uniformly distributed load of 3.5 KN/m2
- Structural ringbeam supplied with Atlas lantern roof kits doesn’t rely on the structural stability of the builders kerb on-site
- Pressure plated system for extra security
SUPERIOR THERMAL PERFORMANCE
- Thermal break in rafters prevents cold getting to the inside of the rafter
- Industry leading ridge and rafter U Values
- U values in double glazing 1.2 W/m2K as standard and as low as 1.0 W/m2K on request
FITTER FRIENDLY
- No need for excess silicone at the connections to keep water out
- Ensures a fast high quality installation
DESIGN DETAIL – THE ARCHITECT’S CHOICE
- Roof proportionately correct with ridge and hips all 40mm
- Stock lantern pitch 25 degrees
Contemporary Lanterns, Your Way...
- Glazing
- Solar Control
- Self-cleaning
- Specification
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
Glazing
Glass. More than meets the eye.
As standard, Atlas roof glass will be specified to combine heat reflection and thermal insulation. They utilise Low-E softcoats and Solar control combination coating, with warm edge spacers and argon gas filled cavity.
This specification controls the amount of visible light, UV and heat that passes through the glazed unit. Destructive UV rays are reduced by up to 91% with the correct glass specification in. This helps in reducing fading of furniture and fabrics from sun damage. With self-cleaning technology as standard, the roof lantern’s glass will require less maintenance.
Solar Control
Solar control glass
This intelligent glass reflects over 60% of the sun’s solar energy. This prevents conservatories and rooms with our Roof Lanterns from becoming unbearably hot in summer. Solar glare is reduced too, creating a beautifully ambient environment.
A combination of low emissivity inner glass and argon gas filling means the Atlas solar control glass reduces the thermal transmission by half compared to ordinary double glazing. This reduces energy costs and keeps glazed roof rooms warmer in winter.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue. Glass can be upgraded to Sunshield blue which reflects up to 82% of the sun’s solar energy. Triple glazing is available to improve centre pane U values down to 0.5W/m2k
Self-cleaning
Self-cleaning glass
Atlas’ Solar Blue and Solar Neutral Glass have a special self-clean coating with a microscopic film. Their self-cleaning glass helps daylight and rainwater break down, allowing dirt and grime to simply wash away.
The self-cleaning technology uses both rain and UV light from the sun to efficiently combat dirt and grime that accumulates on the outside of the window, reducing the need for manual cleaning.
Available in Self-Cleaning Solar Neutral and Self-Cleaning Solar Blue.
Specification
Technical Specification
High technology solutions for today’s roofs.
All Atlas roof double glazed units incorporate toughened safety glass and are manufactured to the highest British and European Standards. They boast both BS EN 1279 parts 2 & 3 and BS EN 12150 accreditations.
CONTEMPORARY LANTERN STOCK SIZES
The Atlas Contemporary Lanterns come in a variety of stock sizes

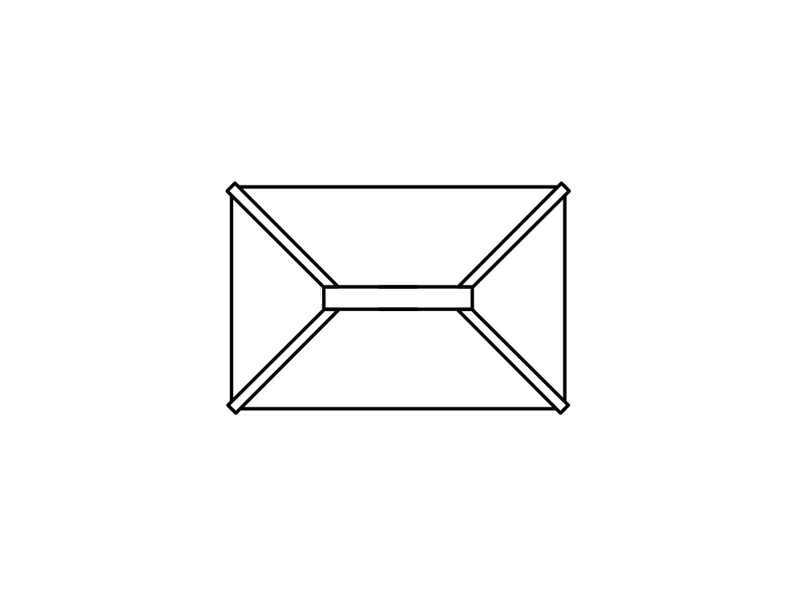

C1 - 1000 x 1500

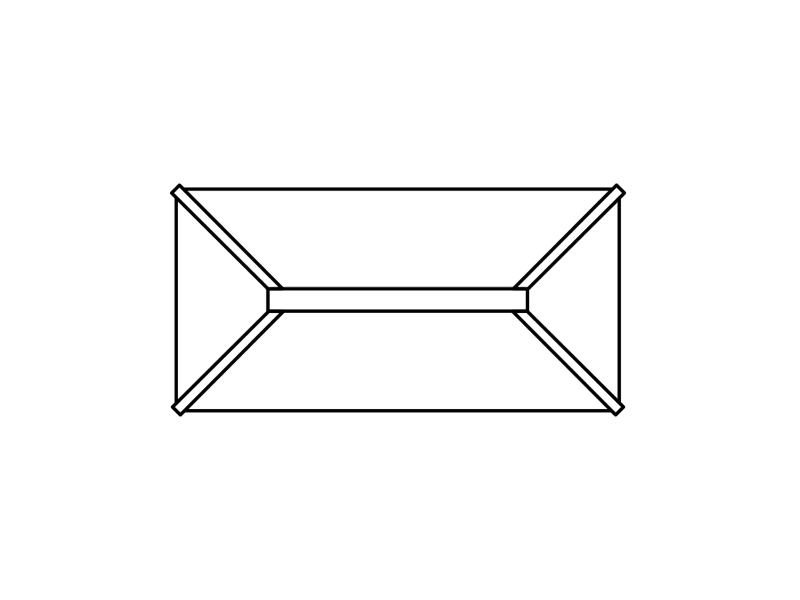

C2 - 1000 x 2000

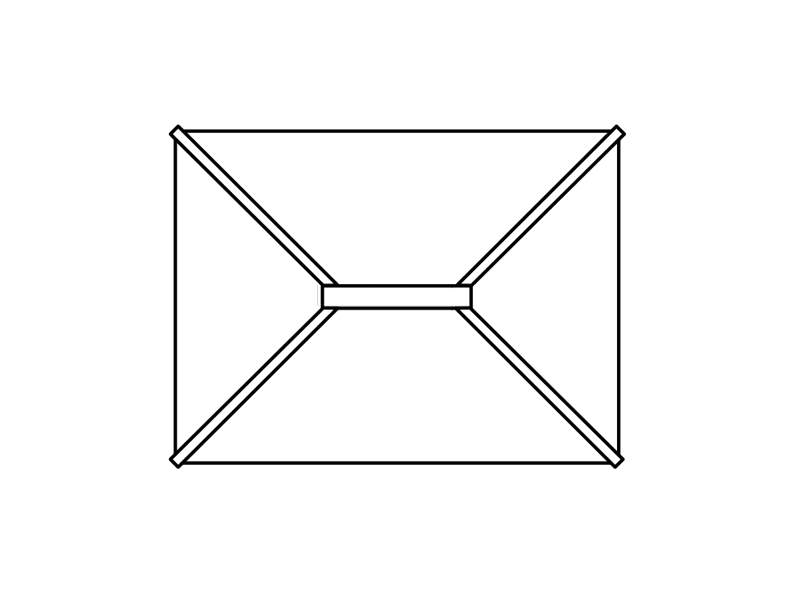

C3 - 1500 x 2000

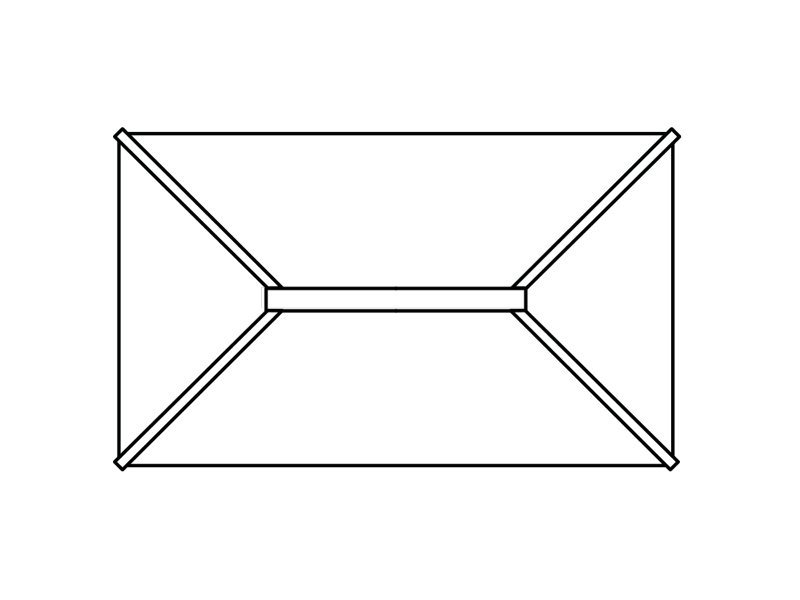

C4 - 1500 x 2500
C5 - 1500 x 3000

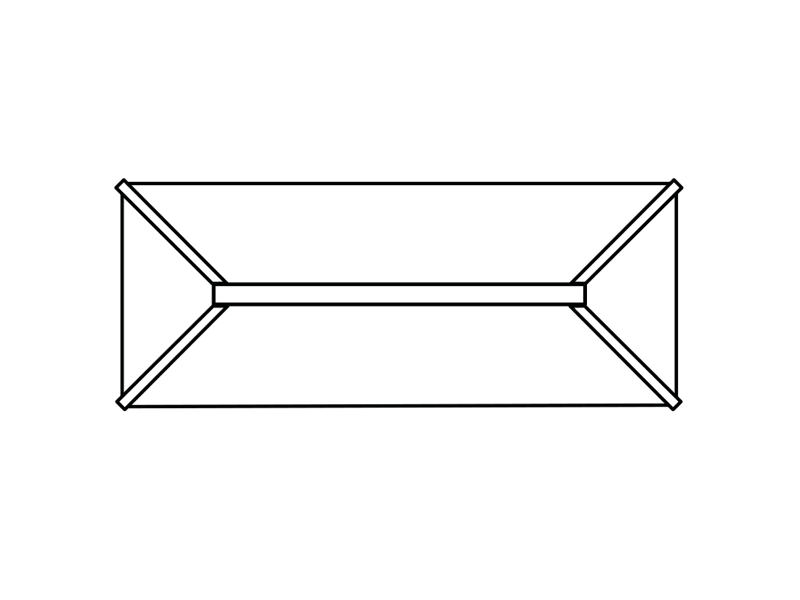

C6 - 1000 x 2500

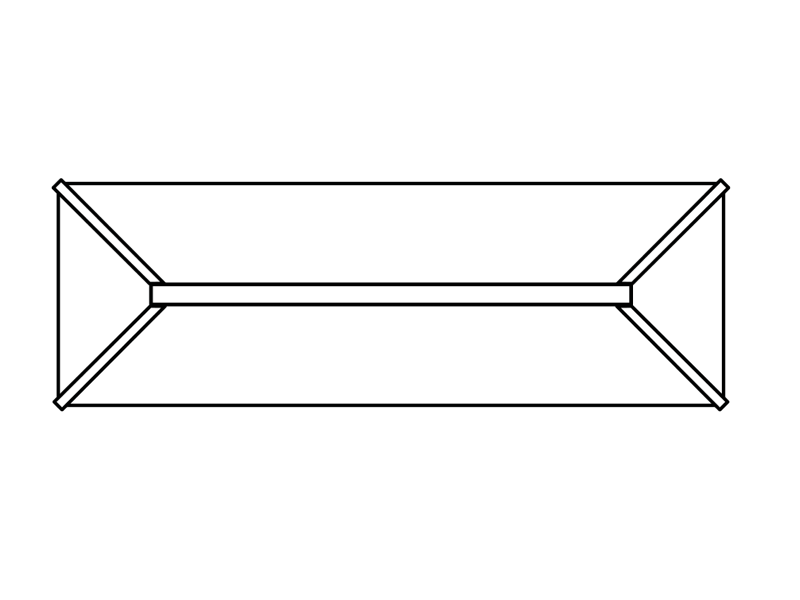

C7 - 1000 x 3000
C8 - 1500 x 1750

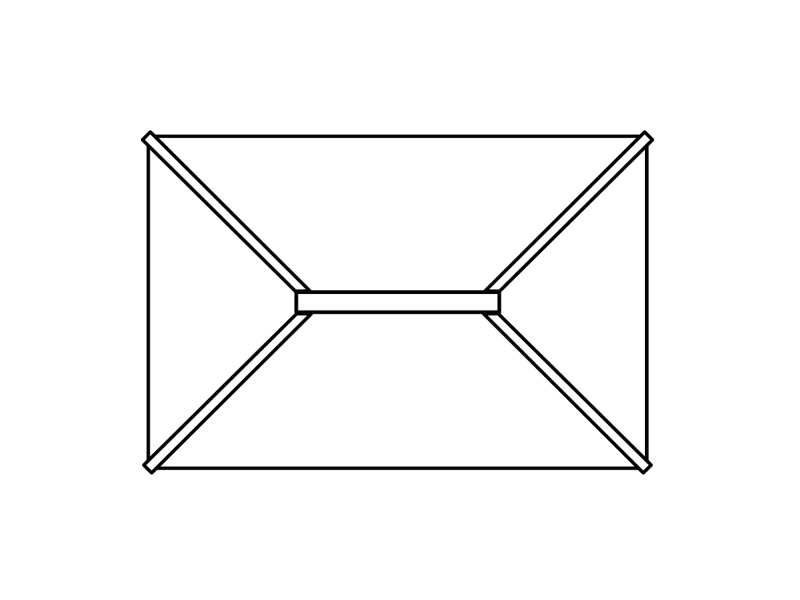

C9 - 1500 x 2250

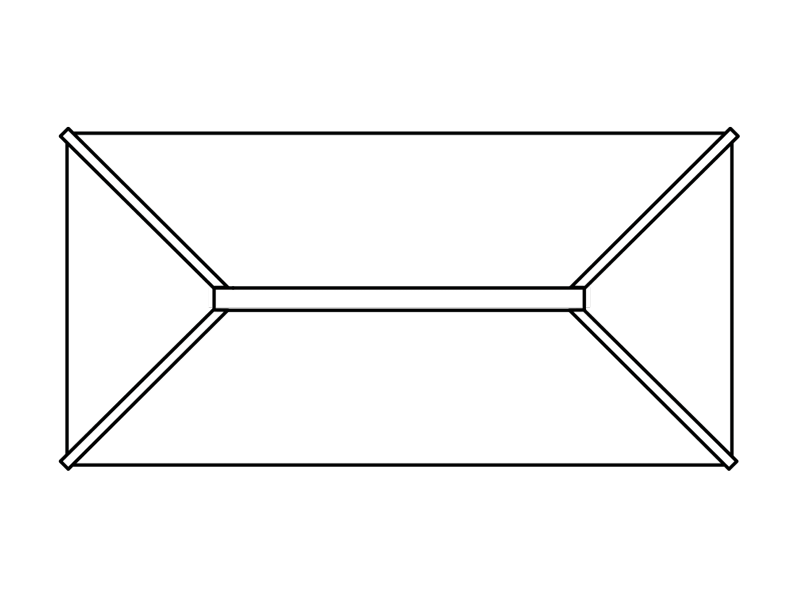

C10 - 1500 x 2750
